Solid State Starters
MCB Packages with Disconnect
HP: 5HP - 1,400HP
Features
-
208V, 5 - 100HP
-
230V, 5 - 200HP
-
460V, 10 - 1,000HP
-
575V, 15 - 1,400HP
-

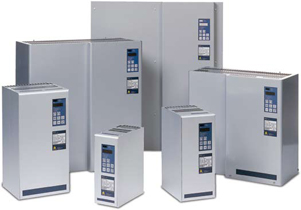

Advanced Solid-State Reduced Voltage Motor Starter
-
Torque Ramp for Linear Acceleration
-
Simple Set-up for the Majority of Applications
-
Forward / Reverse Jogging
-
Complete Monitoring Package Eliminates Need for Add on Devices
-
Extensive Protection Features for Motor and Starter
-
Rugged Compact Design
-
Dynamic Motor Mapping Fine Tunes Every Start
Combination Panels Include
-
NEMA Rated Panel as Defined in Table
-
Circuit Breaker Disconnect with Rotary through the Door Handle Mechanism
-
Torque Controlled Soft Starter type MSF
-
ATL Rated Bypass Contactor in All NEMA 4/12 Units
-
NEMA 1 Includes Installed Fan & Filter Kits
-
Customer Terminals for Motor Connections
-
Control Power Transformer
-
Motor Start/Stop and Run Pilot Device (Door Mounted)
-
NEMA 4/12 Units are Rated for Crusher Duty
-
NEMA 4/12 Units includes Emergency Bypass Switch (For Across-the-Line) Start
Options
-
NEMA 1, 12, 4, 4X and 3R Enclosures
-
Disconnect
-
Shunt Trip
-
Input Fusing
-
Dual Motor Starting
-
Reversing Contactors
-
Pushbuttons
-
Switches
-
Lights
-
Full Horsepower Bypass
-
In-Line Contactor
-
Space Heater
-
Oversized CPT
-
Relay Logic Configurations
-
Serial Communications
-
Oversized Enclosures and Much More
|
|
|
| NEMA 4/12 Units are Designed for Crusher Applications |
|
Max HP By Volume |
MSF AMP RATING |
NEMA 1 |
NEMA 4/12 |
|
208V |
230V |
460V |
575V |
TECO PART NUMBER |
|
5 |
5 |
10 |
15 |
17 |
TMSF17CBN1 |
TMSF17CBN12BYP |
|
7.5 |
10 |
20 |
30 |
30 |
TMSF30CBN1 |
TMSF30CBN12BYP |
|
10 |
15 |
30 |
40 |
45 |
TMSF45CBN1 |
TMSF45CBN12BYP |
|
15 |
20 |
40 |
60 |
60 |
TMSF60CBN1 |
TMSF60CBN12BYP |
|
20 |
25 |
50 |
75 |
75 |
TMSF75CBN1 |
TMSF75CBN12BYP |
|
25 |
30 |
60 |
75 |
85 |
TMSF85CBN1 |
TMSF85CBN12BYP |
|
30 |
40 |
75 |
100 |
110 |
TMSF110CBN1 |
TMSF110CBN12BYP |
|
40 |
50 |
100 |
125 |
145 |
TMSF145CBN1 |
TMSF145CBN12BYP |
|
50 |
60 |
125 |
150 |
170 |
TMSF170CBN1 |
TMSF170CBN12BYP |
|
60 |
75 |
150 |
200 |
210 |
TMSF210CBN1 |
TMSF210CBN12BYP |
|
75 |
100 |
200 |
250 |
250 |
TMSF250CBN1 |
TMSF250CBN12BYP |
|
100 |
125 |
250 |
300 |
310 |
TMSF310CBN1 |
TMSF310CBN12BYP |
|
- |
150 |
300 |
350 |
370 |
TMSF370CBN1 |
TMSF370CBN12BYP |
|
- |
175 |
350 |
450 |
450 |
TMSF450CBN1 |
TMSF450CBN12BYP |
|
- |
200 |
450 |
550 |
570 |
TMSF570CBN1 |
TMSF570CBN12BYP |
|
- |
- |
500 |
700 |
710 |
TMSF710CBN1 |
TMSF710CBN12BYP |
|
- |
- |
600 |
800 |
835 |
TMSF835CBN1 |
TMSF835CBN12BYP |
|
- |
- |
800 |
1000 |
1000 |
TMSF1000CBN1 |
TMSF1000CBN12BYP |
|
- |
- |
1000 |
1400 |
1400 |
CALL |
CALL |
|
|
|
|
